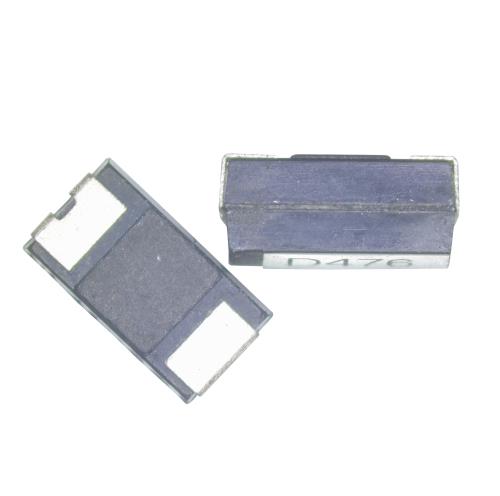

High temperature resistant chip tantalum solid electrolyte capacitor

Product features:

●Due to the use of high temperature resistant anode and cathode materials, the maximum allowable service temperature can reach 150 ℃, and the leakage current is small.

●It has very low ESR and low ESL [equivalent series inductance], which can be used in the filter circuit with higher frequency;

●No combustion and explosion in case of accidental breakdown, no fire and secondary breakdown effect will be caused, and the safety is excellent;

●The switching power supply circuit with low impedance is not sensitive to surge current and voltage. It only needs to be reduced by 10-20% to ensure high safety and low failure rate;

●Low internal resistance, higher ripple resistance, greatly reduced heat generated during filtering and high-power discharge, better filtering effect, and easier discharge waveform to meet technical requirements;

●Its reliability is one order of magnitude higher than that of the chip tantalum capacitor with manganese dioxide as cathode;

●The filter circuit with high ripple and high power and high frequency discharge circuit can be used without large derating;

●Executive standard: QJ / pwv518-2013

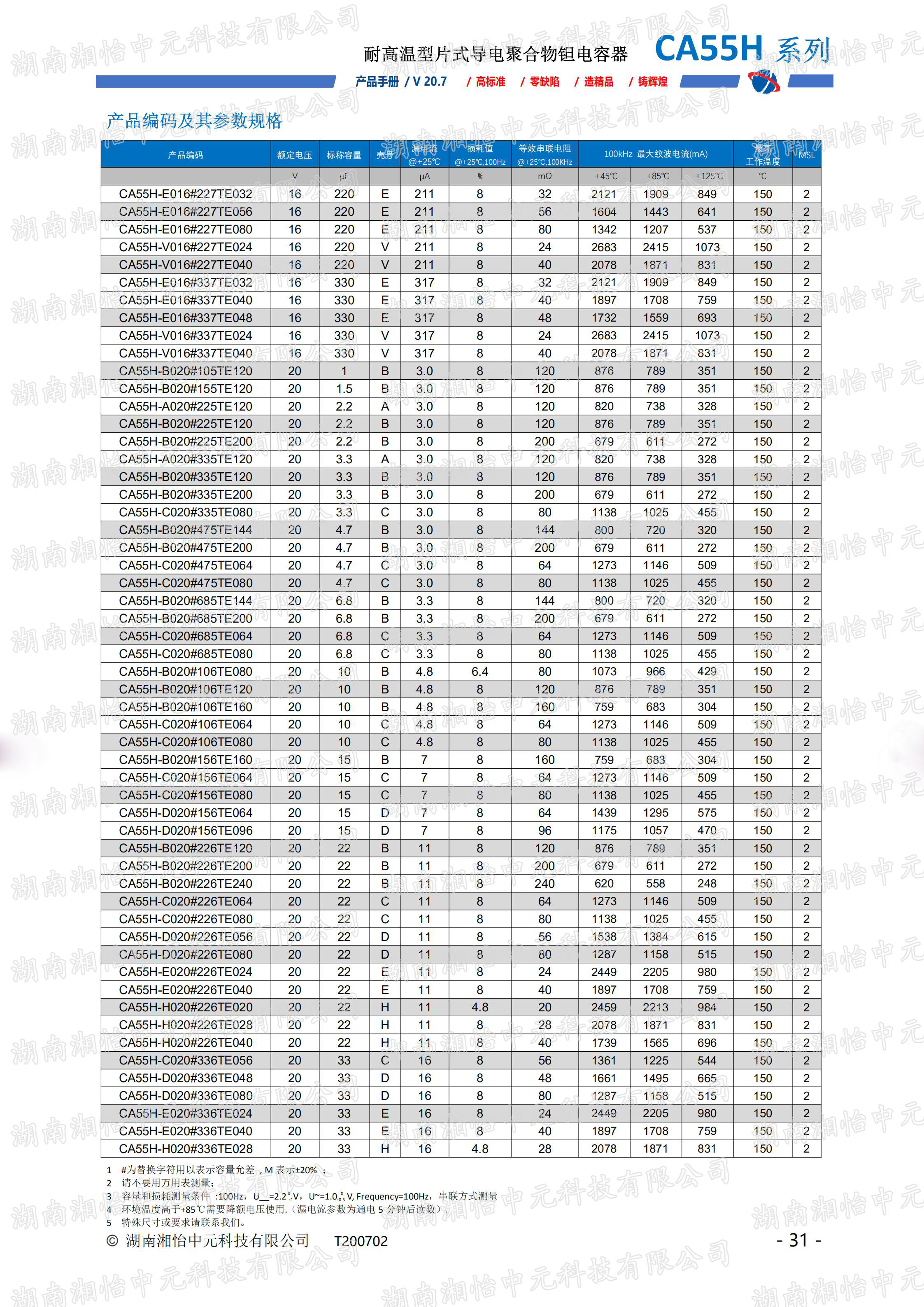

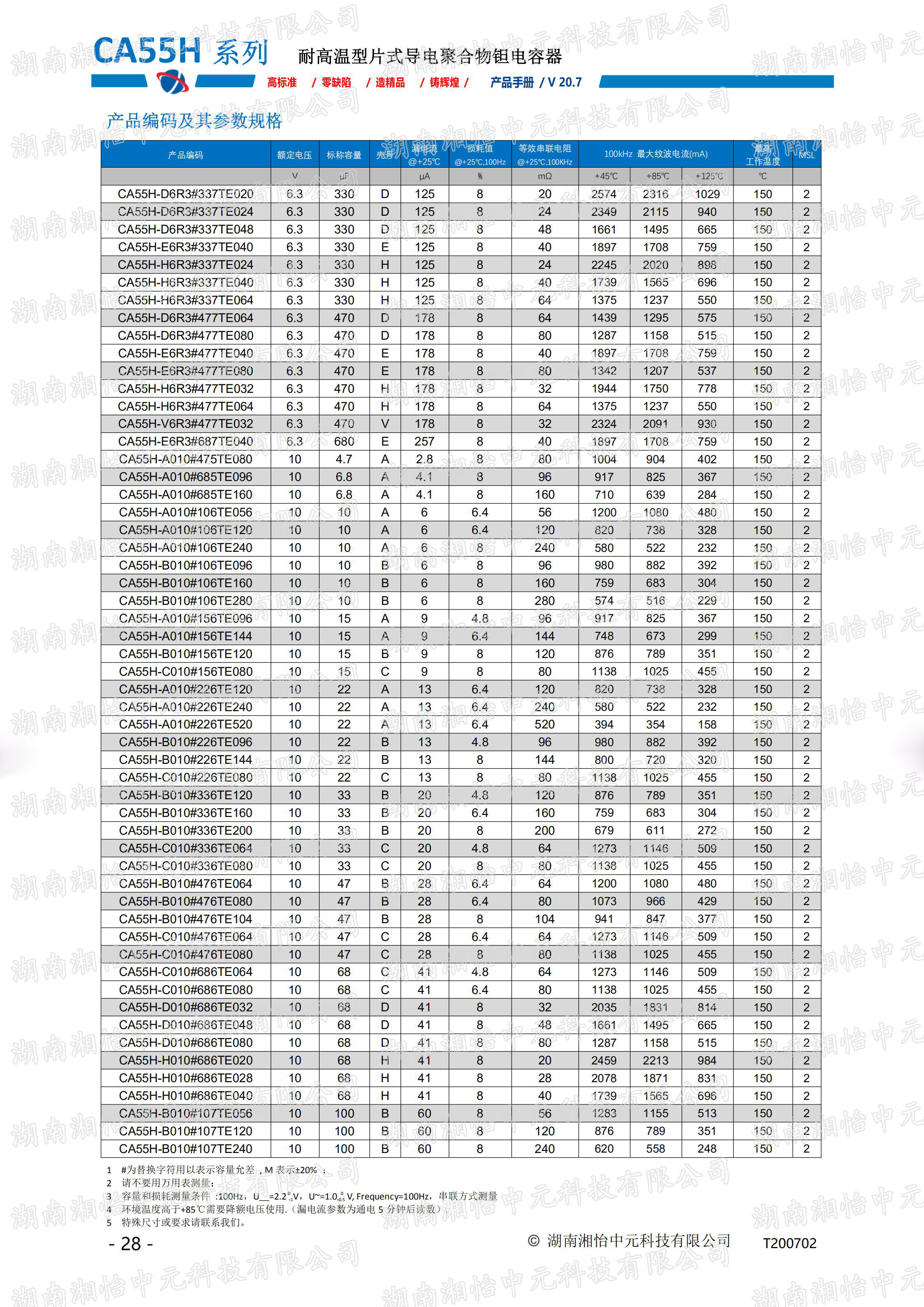

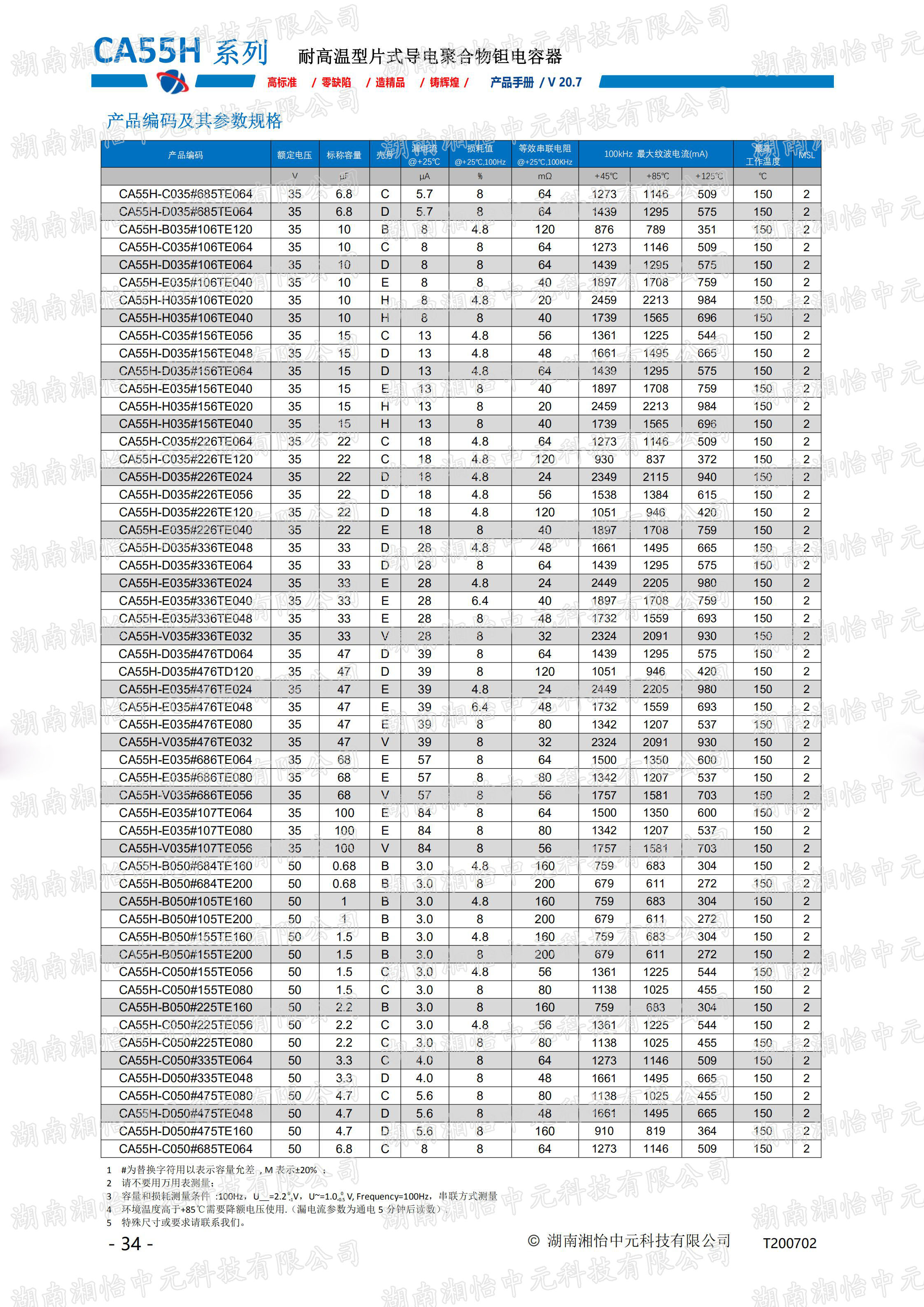

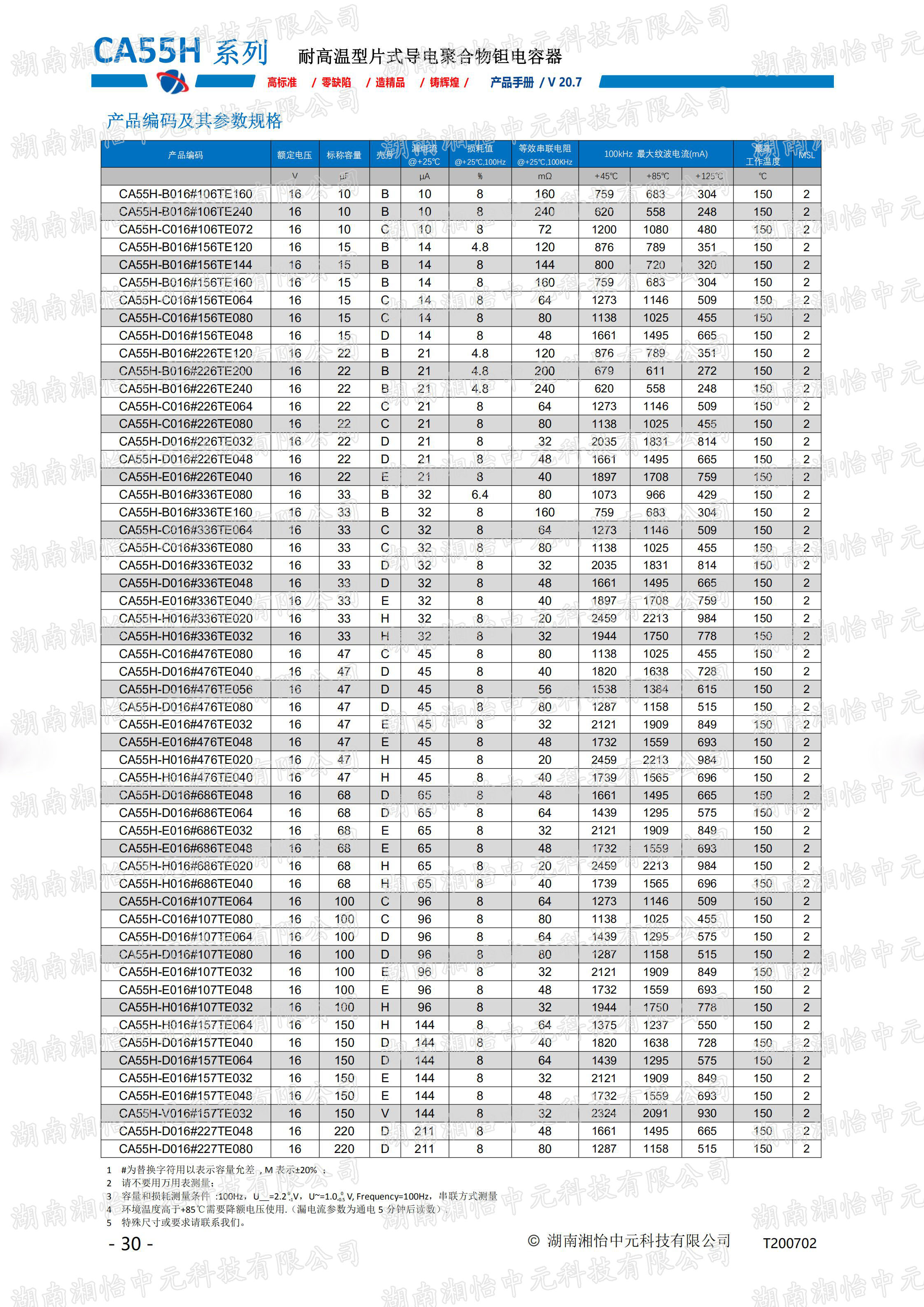

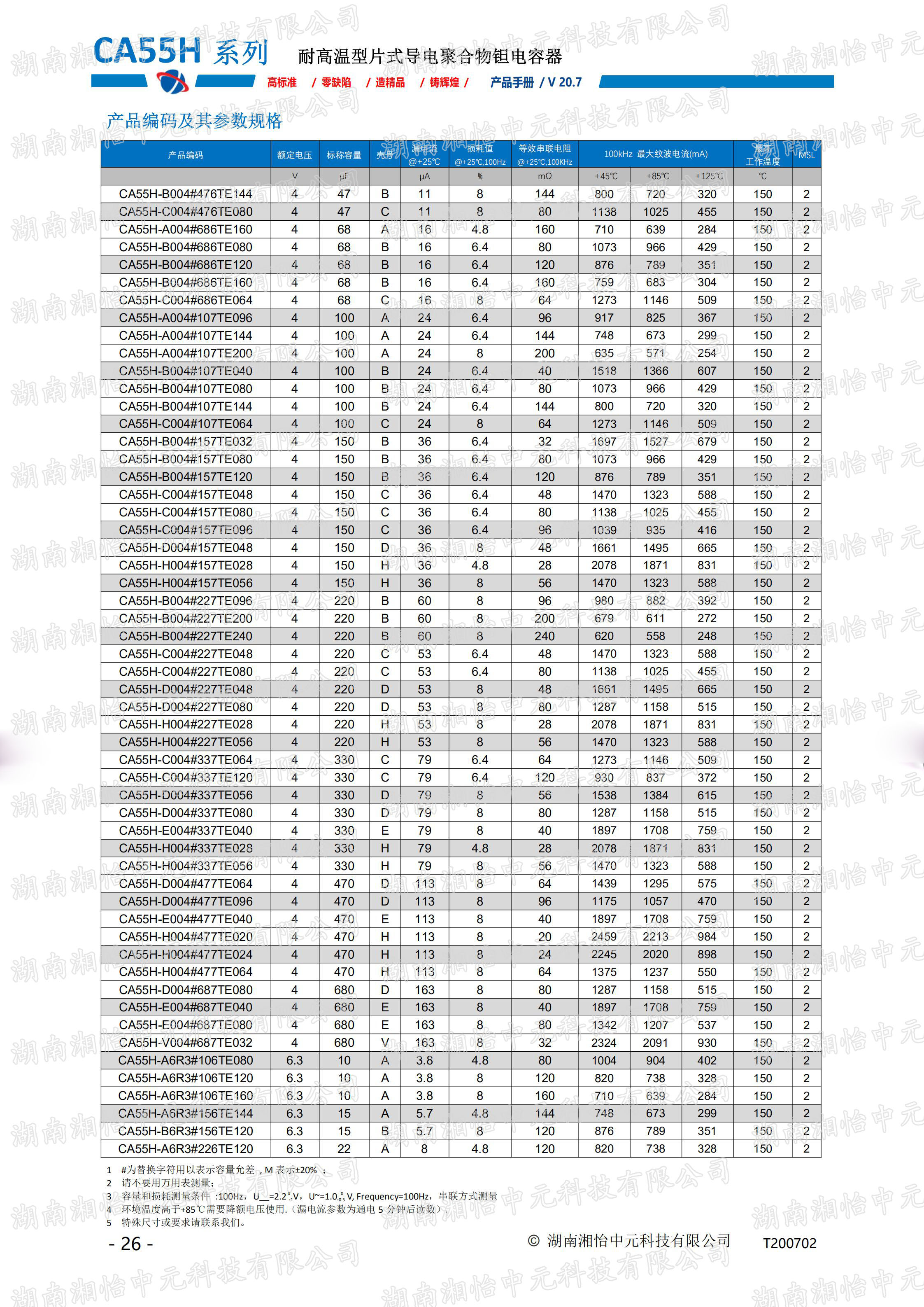

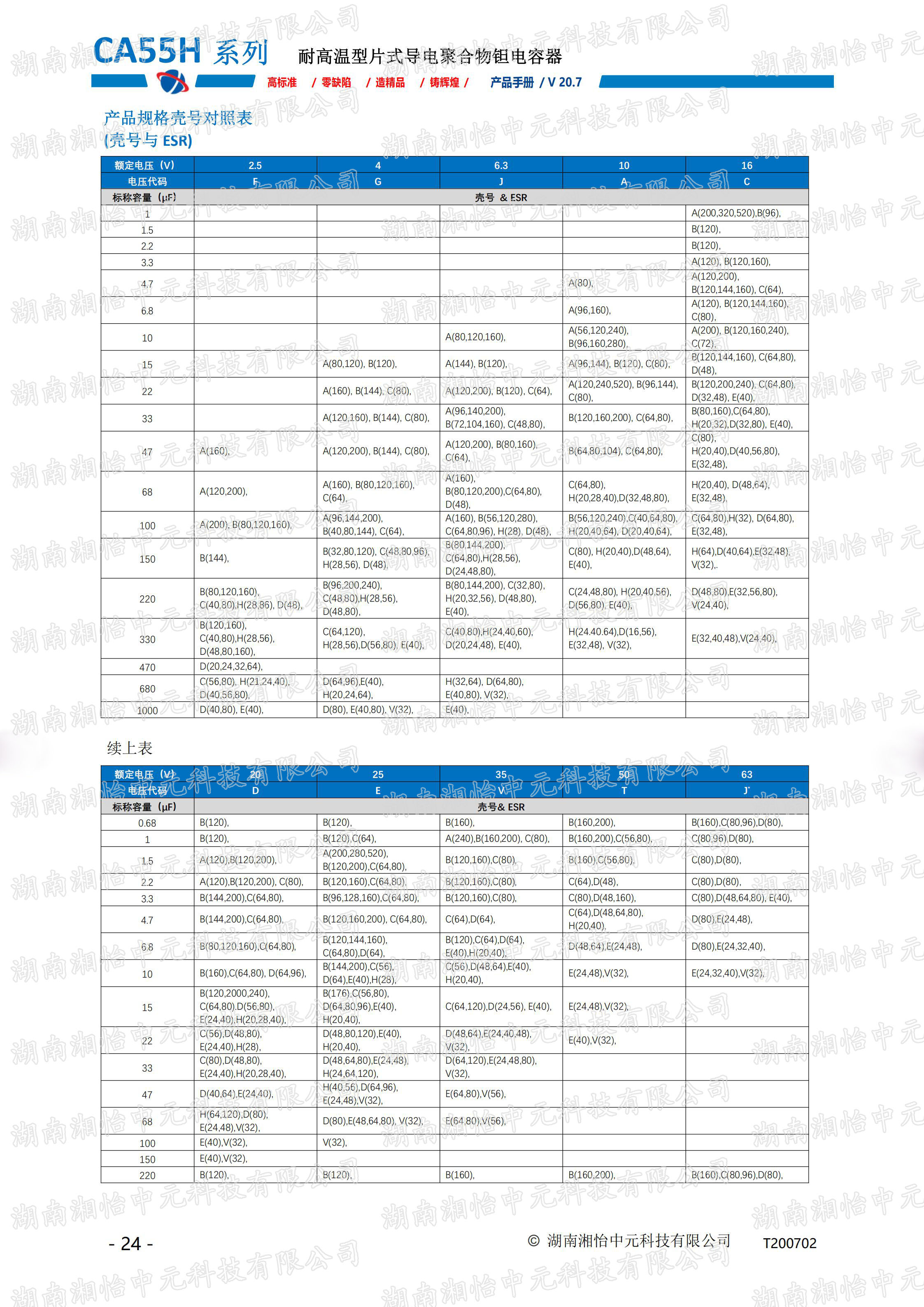

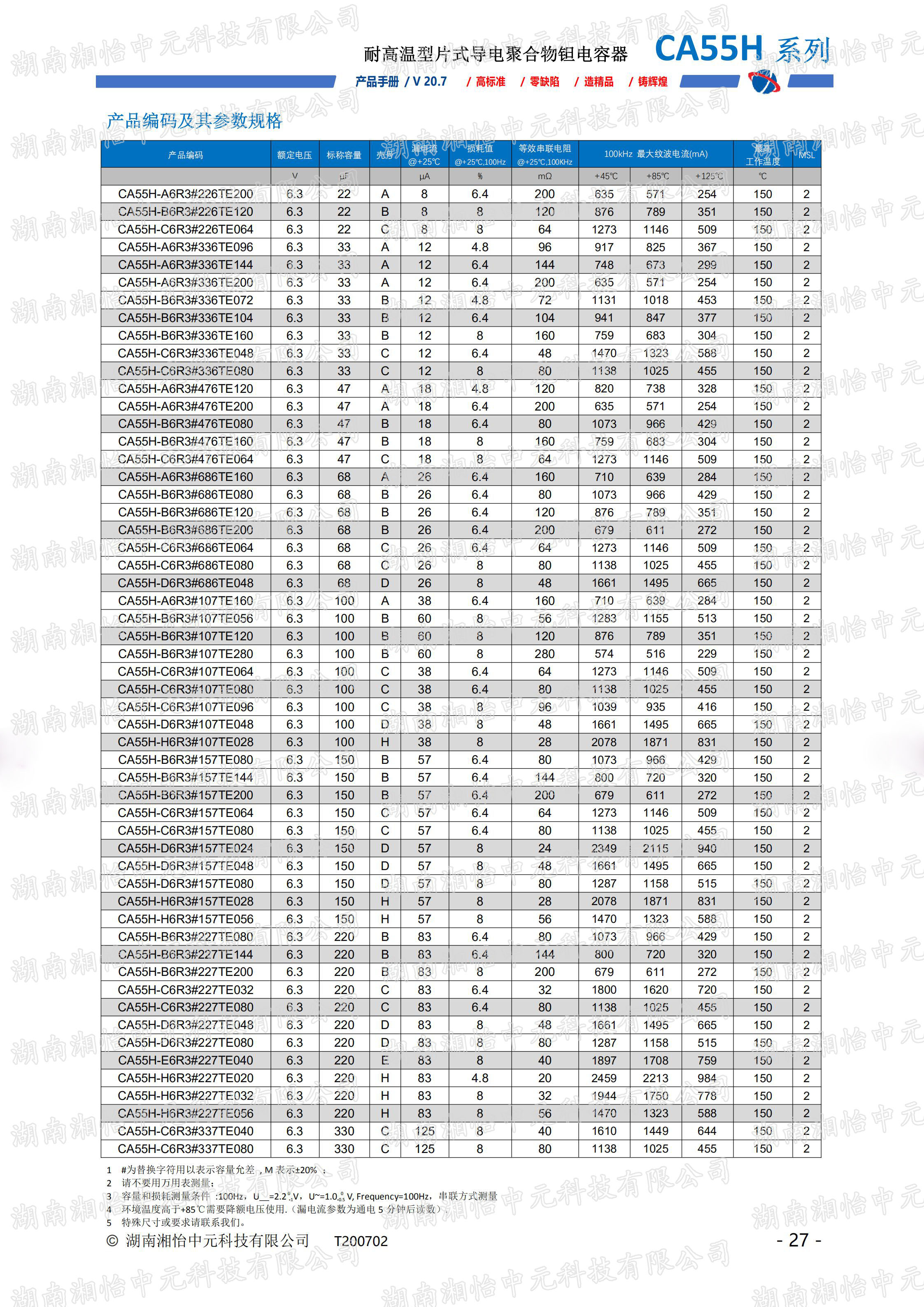

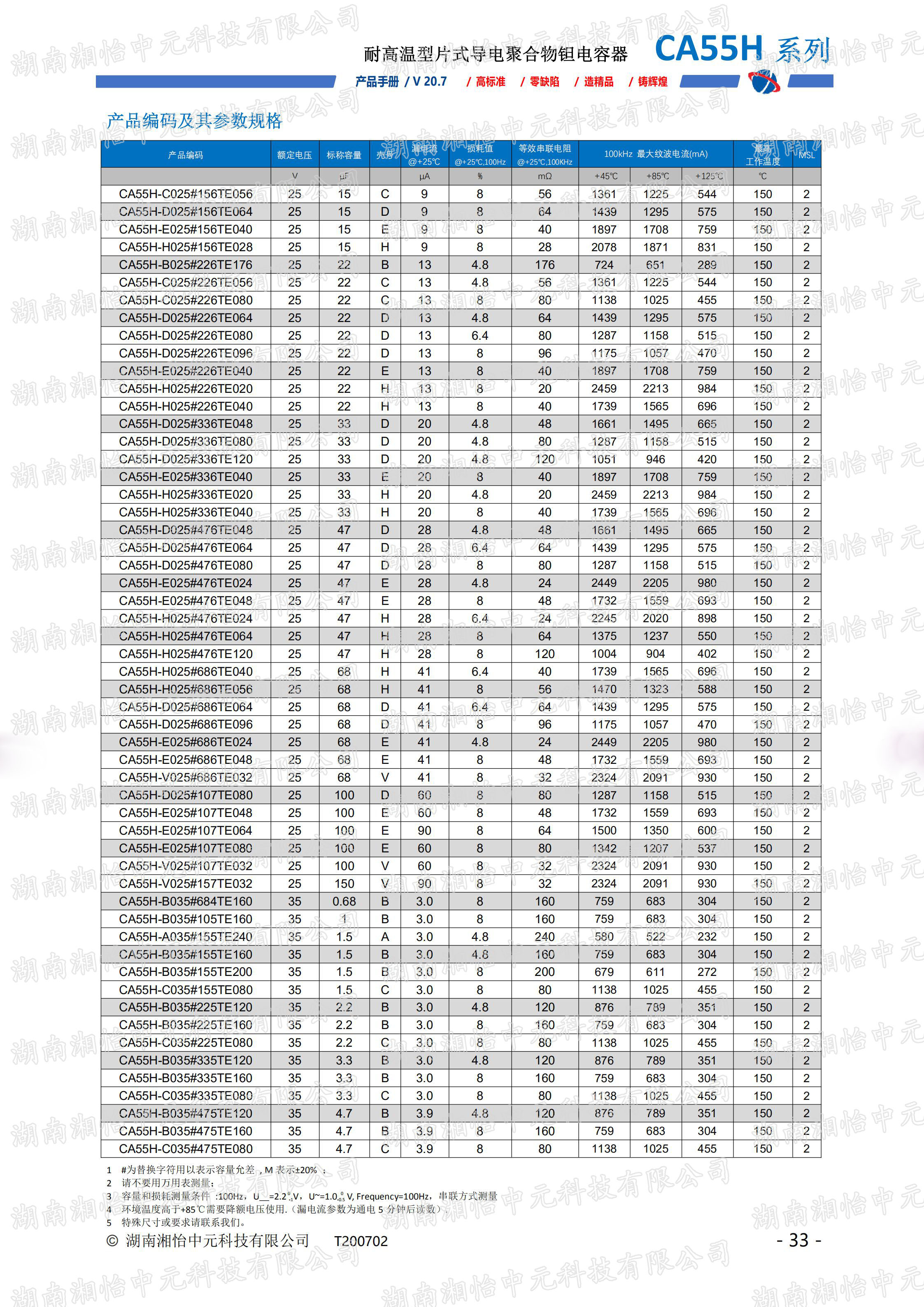

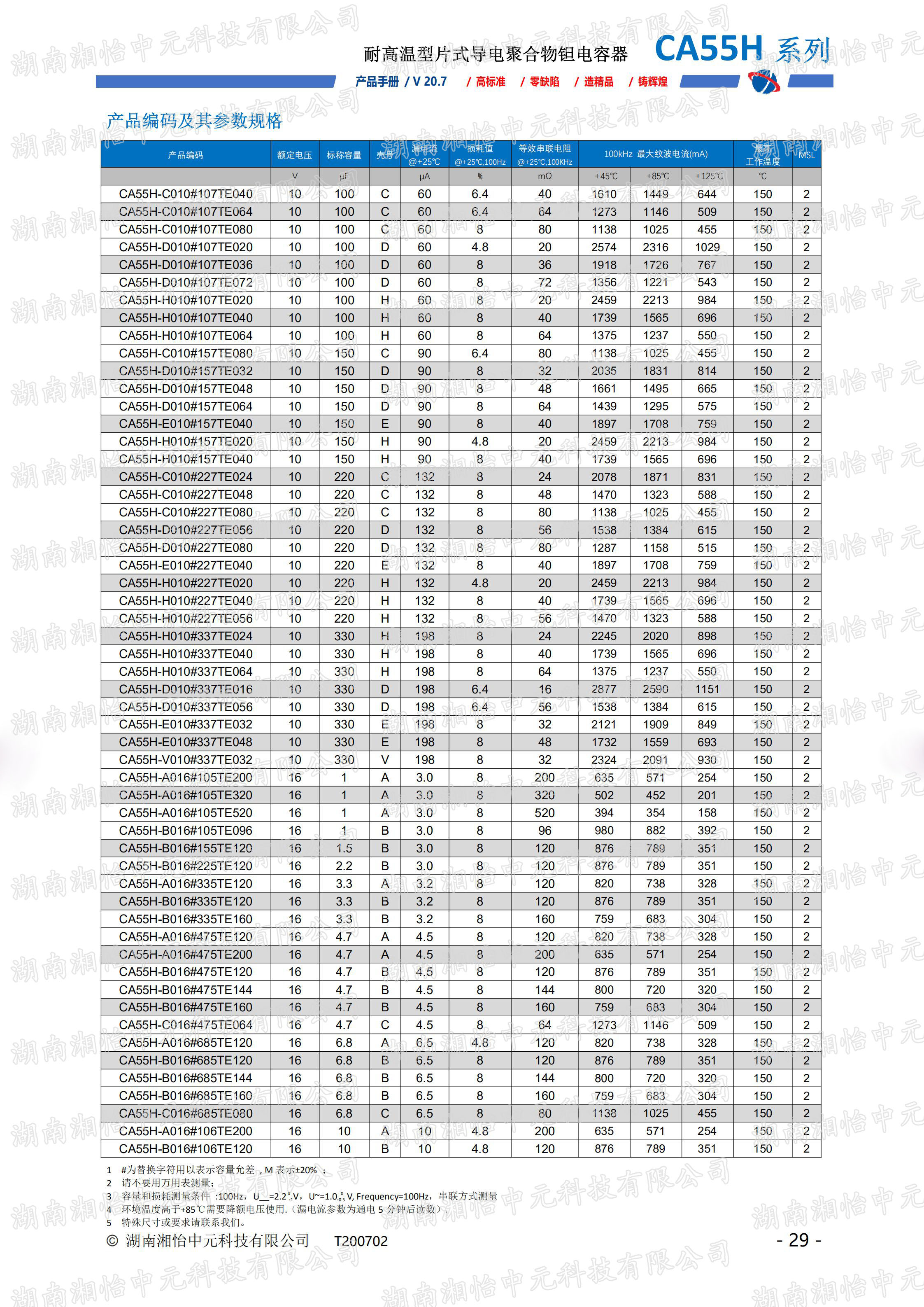

产品手册展示：
